Enya: Compact and powerful

The Enya AQUA is a true masterpiece by Robin Wood.

Its unique constellation ensures sustainable, efficient and economical heating with maximum comfort. With an efficiency of up to 94.87% and an energy efficiency class A++, the water-powered pellet stove burns the wood pellets in an environmentally friendly and clean manner.

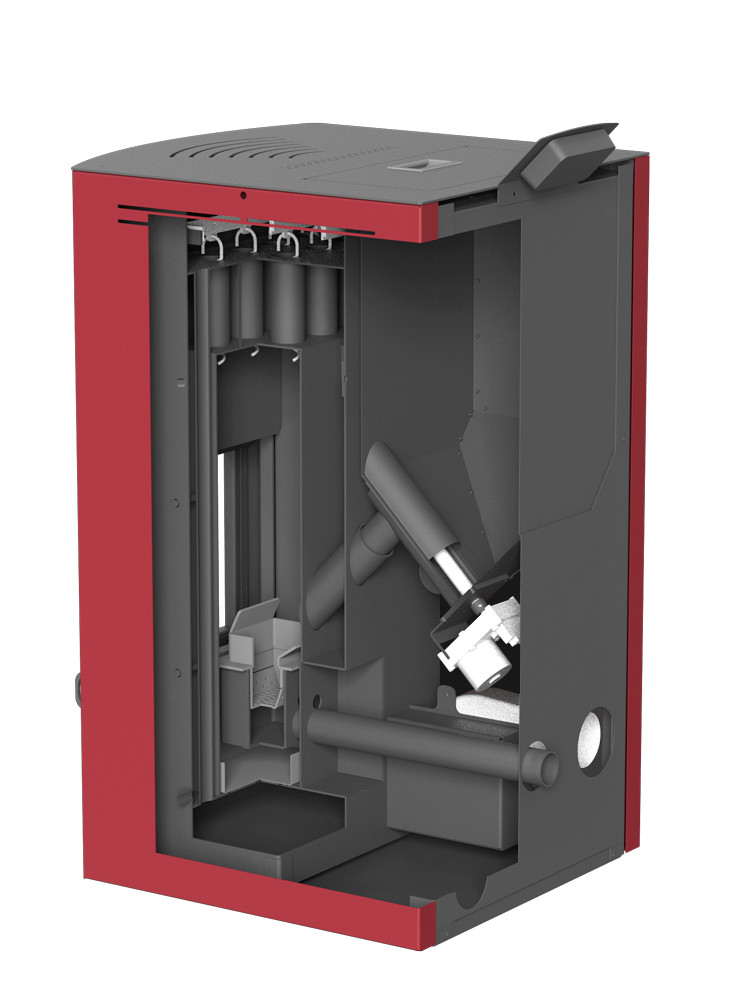

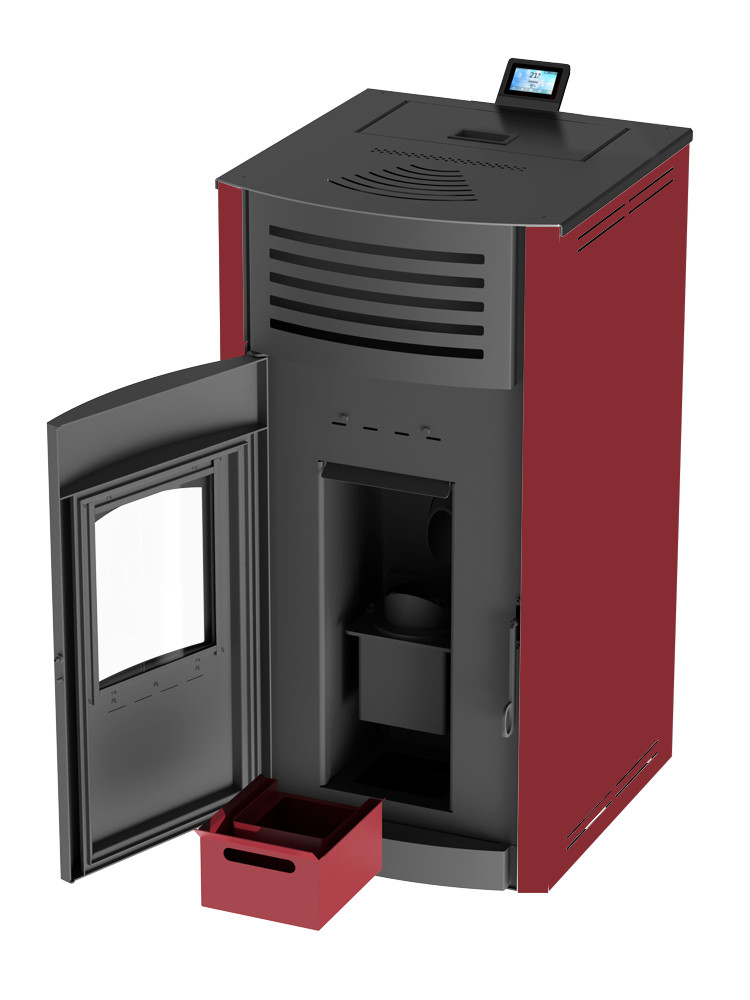

Equipped with the ROBIN WOOD EASY CLEAN burner cleaning system, the oven cleans itself after each use or at set intervals. The large ash pan ensures long intervals between manual emptying.

A sophisticated technical interaction between the Wilo high-efficiency pump, safety temperature limiter, expansion vessel, safety valve and system pressure sensor ensures quick installation in your heating system.

Thanks to self-regulating heat distribution, the living space is warmed appropriately without overheating the room (e.g. with the Enya Aqua 18; 1.98 kW heat output in the installation room and 16.15 kW) to the buffer storage.

The simple design language combines design with functionality. The oven always has a clean appearance.
Optionally, you can use the ROBIN WOOD SMART FIRE WiFi module and the associated app to access the pellet stove from your smartphone at any time and adapt it to your needs. With the help of the WLAN module, the pellet stove can also be controlled via the “Alexa” voice assistant.

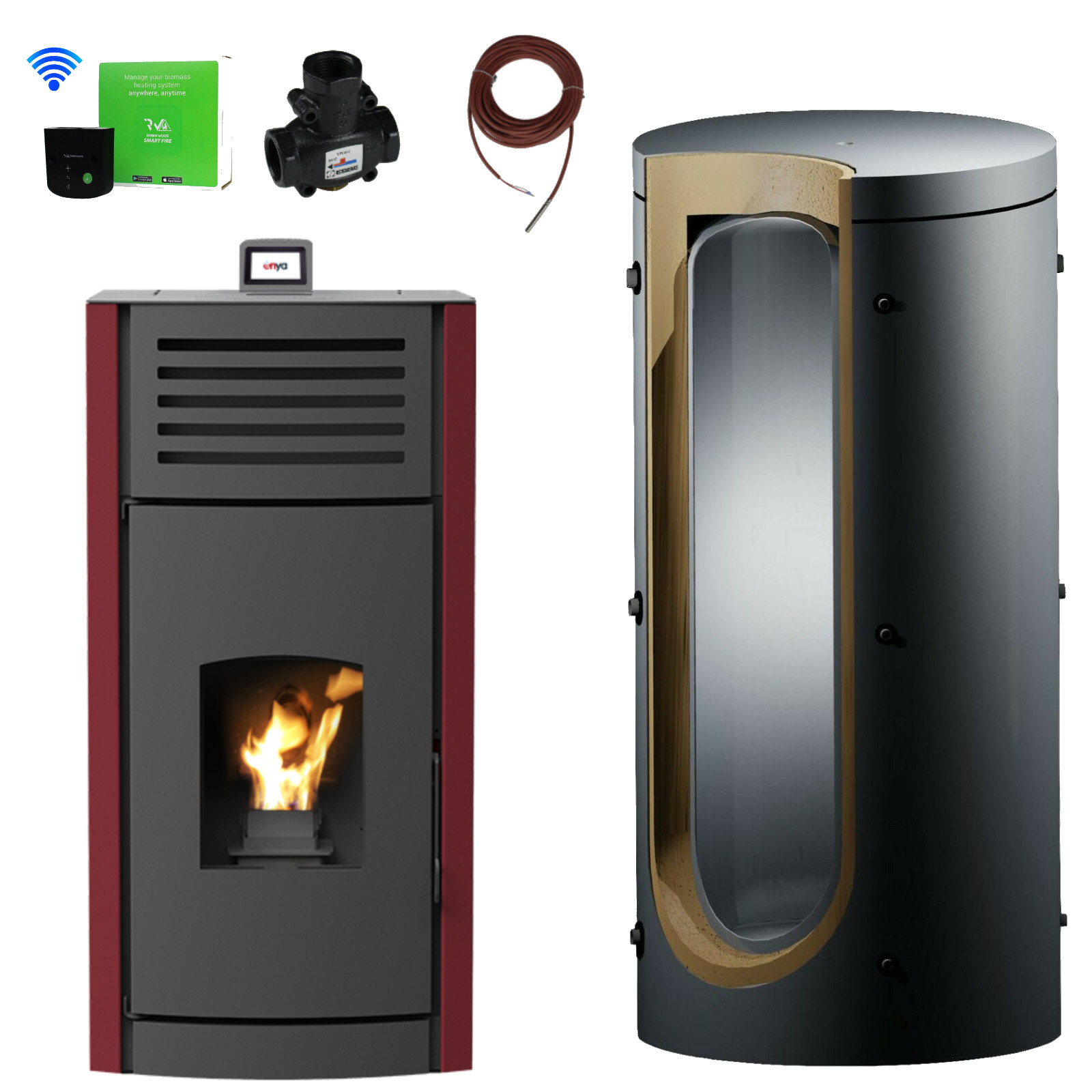

The accessory set contains: return increase, WiFi module and a buffer sensor.

Dimensions buffer tank:

Technical data 500 liters:

Storage height: 1782 mm
Diameter with insulation: 757 mm
Diameter without insulation: 650 mm
Max. permissible temperature: 95°C
Water drain: 75mm
Weight: 100kg

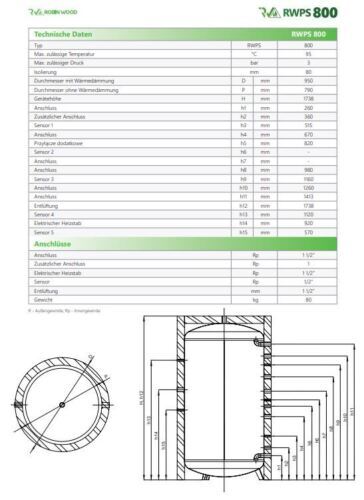

Technical data 800 liters:

Storage height: 1738 mm
Diameter with insulation: 950 mm
Diameter without insulation: 790 mm
Max. permissible temperature: 95°C
Water drain: 75mm
Weight: 100kg

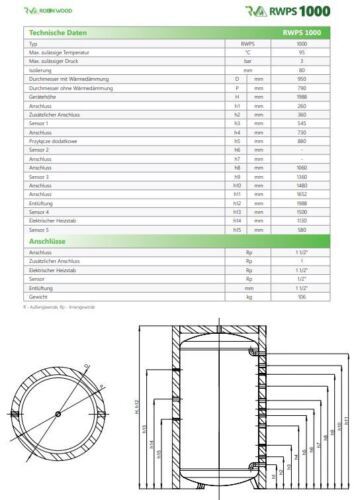

Technical data 1000 liters:

Storage height: 1988 mm
Diameter with insulation: 950 mm
Diameter without insulation: 790 mm
Max. permissible temperature: 95°C
Water drain: 75mm
Weight: 100kg

Connections:

Water drain: 1 1/2” internal thread
Connection: 1 1/2” internal thread
Sensor: 1/2" internal thread
Vent: 1 1/2" female thread

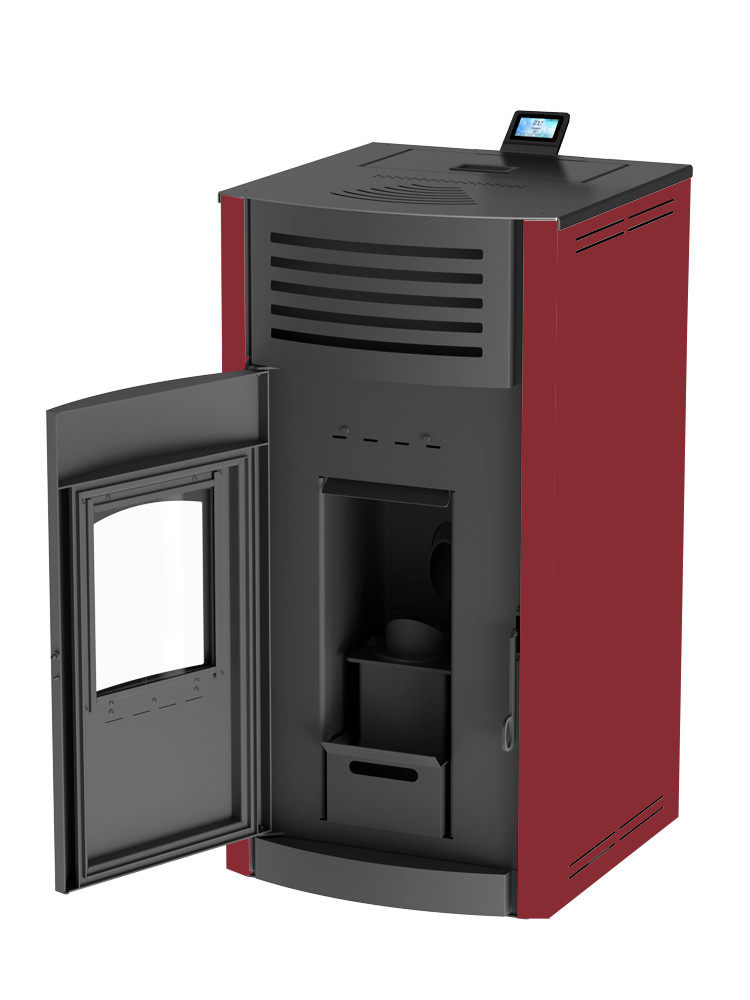

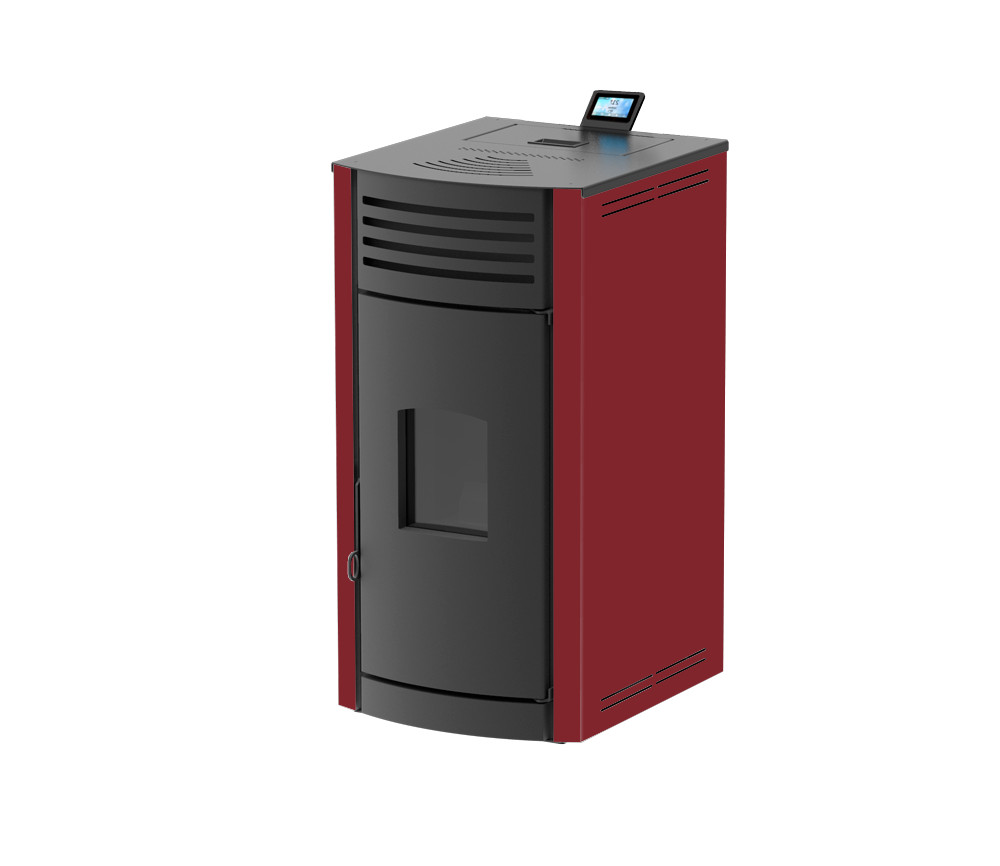

Technical data ENYA AQUA 18:

▸ Height H: 1127mm
▸ Width B: 584mm
▸ Depth T: 631mm
▸ Capacity of the pellet container: 30 kg
▸ Fresh air connection: Ø 60mm
▸ Smoke pipe connection: Ø 80mm
▸ Net weight: 175 kg
▸ Fuel type: Wood pellets Ø6 - Ø8
▸ Power connection: 230/50 V/Hz
▸ Water jacket capacity: 41 liters
▸ Operating pressure: 0.5 - 2.0 bar
▸ Possible ambient temperature in operation: 5 - 40°C
▸ Humidity at 30°C ambient temperature: 85%
▸ Max. Water temperature: 90°C
▸ Energy consumption: 14 W/h

✓ Test results at nominal heat output 18.13 kW.

▸ Power delivered to the environment: 1.98 kW
▸ Power delivered to the water: 16.15 kW
▸ Efficiency at nominal power: 94.04%
▸ Exhaust gas temperature: 86.70 °C
▸ Exhaust gas mass flow: 12.00 g/s
▸ Flue gas velocity: 1.70 m/s
▸ Chimney draft: 10.10 Pa

✓ Test results with reduced heat output 6.48 kW:

▸ Power delivered to the environment: 0.96 kW
▸ Power delivered to the water 5.52 kW
▸ Efficiency with reduced heat output 6.48 kW: 94.87%
▸ Exhaust gas temperature: 78.79 °C
▸ Flue gas velocity: 1.70 m/s
▸ Chimney draft: 9.60 Pa
